X Tend Stainless Steel Cable Mesh For Landscape And Greening Projects

Name: X Tend Stainless Steel Cable Mesh For Landscape And Greening Projects
Brand: HUIHAO KASITE
Price: 14 USD

Quality X Tend Stainless Steel Cable Mesh For Landscape And Greening Projects for sale

Brand Name : HUIHAO KASITE

Model Number : HH-SS-XTM

Certification : ISO9001-2015

Place of Origin : CHINA

MOQ : 1 SQUARE METER CABLE MESH

Price : USD14-USD28 / ME OF CABLE MESH

Payment Terms : T/T

Supply Ability : 6000 M2 PER 30 DAYS

Delivery Time : 7 WORK DAYS

Packaging Details : CARTON OR WOODEN CASE FOR DELIVERY

Name : x tend stainless steel cable mesh

Application : For Landscape And Greening Projects

Structure : Wire rope cross clip, Flexible net clip, Fork type green wall post, Green wall post

Mesh type : Hand weave type cable mesh

Opening angle : 20°, 30°, 60°, 70° and 75° are set as standard opening, and optimal stretched at 90

Wire rope structure : 7x7, 7x19

Contact Now

X Tend Stainless Steel Cable Mesh For Landscape And Greening Projects

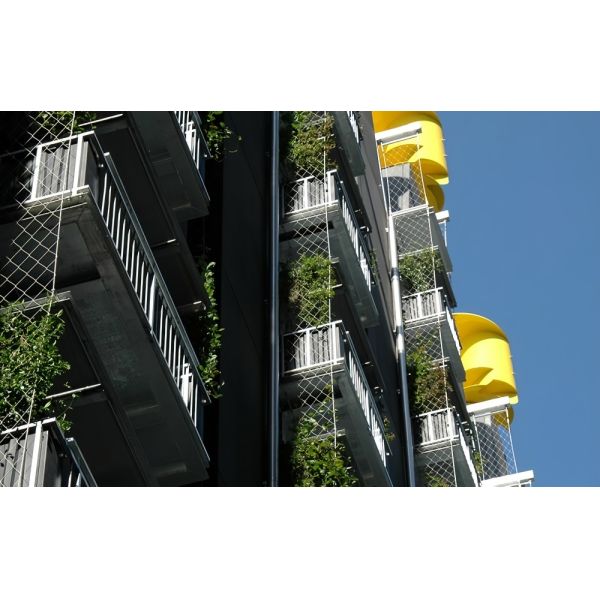

We provide a high quality combination of stainless steel wire ropes, rods and cable mesh to create a structure that supports climbing plant growth. This structure is widely used in building greenery projects of different scales, from small garden stainless steel wire trellises to huge multi-storey parking lots. Our cable mesh system delivers an elegant, sustainable and cost-effective solution for green walls. Besides, our system helps to improve the overall appearance of a building while regulating its temperature, reducing noise and protecting its facade.

Green Wall System – Vivid, Flexible Green Architectural Solutions

Stainless steel cable mesh Green wall system provides a sturdy and safe structure for plant climbing and is suitable for all kinds of climbing plants. Plants grow along the green wall system constantly purify the air and bring people a relaxed life.

Green wall systems are divided into flexible trellis systems and plant climbing net systems that are suitable for dense facade greening and plants with a high leaf area coefficient.

X Tend Stainless Steel Cable Mesh For Landscape And Greening Projects

Stainless steel cable mesh Trellis System

The flexible and lightweight trellis system makes it an ideal support structure for climbing plants. Its unique design allows for attractive design possibilities and a higher degree of flexibility than plant climbing net systems. This stainless steel cable mesh system can be adjusted to adapt to the size of the project and meet different needs.

The trellis system can be installed as a single wire rope or with the help of horizontal bars to form a frame of any size. The length and shape of the frame can be selected according to site conditions, strength requirements and span requirements to ensure its stability and safety.

Stainless steel cable mesh Structure

stainless steel cable mesh can be used for fixing and securing both ends of the wire rope, or clamping the wire rope that crosses at both ends to form a trellis system for green plants. It ensures the firmness and stability of the wire rope, thus providing support for the growth of green plants.

Wire rope cross clip
Flexible net clip
Fork type green wall post
Green wall post
Wire rope

X Tend Stainless Steel Cable Mesh For Landscape And Greening Projects

Specification of X tend stainless steel cable mesh

Hand Woven Type cable Mesh Specifications
Model	Wire Rope Structure	Wire Rope Diameter		Mesh Aperture		Minimum Breaking Force
Model	Wire Rope Structure	inch	mm	inch	mm	(kN)
HH-40203W	7 × 19	5/32"	4	8" × 8"	203 × 203	10.7
HH-40152W	7 × 19	5/32"	4	6" × 6"	152 × 152	10.7
HH-40127W	7 × 19	5/32"	4	5" × 5"	127 × 127	10.7
HH-40102W	7 × 19	5/32"	4	4" × 4"	102 × 102	10.7
HH-4090W	7 × 19	5/32"	4	3.6" × 3.6"	90 × 90	10.7
HH-4076W	7 × 19	5/32"	4	3" × 3"	76 × 76	10.7
HH-32152W	7 × 19	1/8"	3.2	6" × 6"	152 × 152	7.38
HH-32127W	7 × 19	1/8"	3.2	5" × 5"	127 × 127	7.38
HH-32120W	7 × 19	1/8"	3.2	4.7" × 4.7"	120 × 120	7.38
HH-32102W	7 × 19	1/8"	3.2	4" × 4"	102 × 102	7.38
HH-3290W	7 × 19	1/8"	3.2	3.6" × 3.6"	90 × 90	7.38
HH-3276W	7 × 19	1/8"	3.2	3" × 3"	76 × 76	7.38
HH-3260W	7 × 19	1/8"	3.2	2.4" × 2.4"	60 × 60	7.38
HH-3251W	7 × 19	1/8"	3.2	2" × 2"	51 × 51	7.38
HH-24152W	7 × 7	3/32"	2.4	6" × 6"	152 × 152	4.18
HH-24127W	7 × 7	3/32"	2.4	5" × 5"	127 × 127	4.18
HH-24102W	7 × 7	3/32"	2.4	4" × 4"	102 × 102	4.18
HH-2490W	7 × 7	3/32"	2.4	3.6" × 3.6"	90 × 90	4.18
HH-2476W	7 × 7	3/32"	2.4	3" × 3"	76 × 76	4.18
HH-2460W	7 × 7	3/32"	2.4	2.4" × 2.4"	60 × 60	4.18
HH-2451W	7 × 7	3/32"	2.4	2" × 2"	51 × 51	4.18
HH-2076W	7 × 7	5/64"	2	3" × 3"	76 × 76	3.17
HH-2060W	7 × 7	5/64"	2	2.4" × 2.4"	60 × 60	3.17
HH-2051W	7 × 7	5/64"	2	2" × 2"	51 × 51	3.17
HH-2038W	7 × 7	5/64"	2	1.5" × 1.5"	38 × 38	3.17
HH-16102W	7 × 7	1/16"	1.6	4" × 4"	102 × 102	2.17
HH-1676W	7 × 7	1/16"	1.6	3" × 3"	76 × 76	2.17
HH-1660W	7 × 7	1/16"	1.6	2.4" × 2.4"	60 × 60	2.17
HH-1651W	7 × 7	1/16"	1.6	2" × 2"	51 × 51	2.17
HH-1638W	7 × 7	1/16"	1.6	1.5" × 1.5"	38 × 38	2.17
HH-1630W	7 × 7	1/16"	1.6	1.2" × 1.2"	30 × 30	2.17
HH-1625W	7 × 7	1/16"	1.6	1" × 1"	25.4 × 25.4	2.17
HH-12102W	7 × 7	3/64"	1.2	4" × 4"	102 × 102	1.22
HH-1276W	7 × 7	3/64"	1.2	3" × 3"	76 × 76	1.22
HH-1251W	7 × 7	3/64"	1.2	2" × 2"	51 × 51	1.22
HH-1238W	7 × 7	3/64"	1.2	1.5" × 1.5"	38 × 38	1.22
HH-1230W	7 × 7	3/64"	1.2	1.2" × 1.2"	30 × 30	1.22
HH-1225W	7 × 7	3/64"	1.2	1" × 1"	25.4 × 25.4	1.22
HH-1220W	7 × 7	3/64"	1.2	0.8" × 0.8"	20 × 20	1.22
